Why Is Light Source Temperature Testing an Essential Part of Stage Lighting Reliability Validation?

In the development and manufacturing of professional stage lighting equipment, Light Source Temperature Testing is one of the most critical procedures for verifying product safety, stability, and long-term reliability. Whether it is an LED spot light, beam light, wash light, or a fixture using a discharge lamp, the light source remains the core component of the entire fixture. It not only determines brightness, color quality, and optical performance but also directly affects product lifespan and operational stability during live events.

In real-world applications, stage lighting fixtures are often required to operate continuously for extended periods while performing frequent Pan/Tilt movements. As the fixture changes position, the internal airflow path and heat transfer direction also change. If the thermal management system is not properly designed, localized overheating may occur in certain operating positions, potentially leading to lamp failure, accelerated LED lumen depreciation, electronic component aging, or even complete fixture malfunction.

Therefore, systematically evaluating the thermal performance of the light source under various operating conditions is essential to ensuring that fixtures can reliably perform in concerts, theaters, television studios, cultural tourism productions, and other large-scale applications.

Purpose of Light Source Temperature Testing

The primary objective of light source temperature testing is to verify that the fixture remains within a safe operating temperature range under different working modes and installation positions.

For stage lighting fixtures, excessive temperatures can not only shorten the lifespan of the light source but also negatively impact the stability of optical systems, power supplies, and driver circuits.

Through thermal testing, engineers can accurately monitor temperature rise during long-term operation, evaluate cooling system efficiency, and identify potential thermal management risks. The collected data also provides a scientific basis for structural optimization, airflow redesign, and heat sink improvements, ultimately enhancing product reliability and market competitiveness.

Light Source Temperature Testing Scope

The testing scope varies depending on the type of light source used.

For discharge lamp fixtures equipped with reflector lamps, the focus is on monitoring temperature changes at critical lamp locations. During testing, temperatures are recorded at the filament (T), front section (F), rear/base section (R), as well as the top and bottom bulb surface temperatures (IRT and IRB). These measurements help engineers understand heat distribution within the lamp and verify whether localized overheating occurs under different operating positions.

For LED stage lighting fixtures, the focus shifts to the LED module and its thermal management system. Engineers continuously monitor temperature changes during up to four hours of operation under both normal and elevated ambient temperatures，in different working position. Temperature rise trends of the LED module, heat sink, and surrounding electronic components are analyzed. Since LED junction temperature directly affects luminous efficacy and lifespan, this testing is particularly important for evaluating long-term product stability.

Light Source Temperature Testing Conditions

To simulate real-world stage environments as accurately as possible, testing must cover multiple operating modes and installation angles.

For discharge lamp fixtures, tests are typically conducted under three operating conditions:

• Full-power White output

• Red color sheet

• Dimmer mode (reduced power)

Because each operating condition generates different levels of heat, separate validation is required to ensure stable operation across various applications.

For angle testing, fixtures undergo a complete 360° thermal evaluation. Test positions are established at 45° intervals, including:

0°, 45°, 90°, 135°, 180°, 225°, 270°, 315°, and 360°.

This multi-angle approach effectively simulates the wide range of fixture orientations encountered during live applications.

For LED fixtures, testing is generally conducted at four representative positions:

0°, 90°, 180°, and 270°.

At each angle, the fixture operates continuously for a minimum of four hours while temperature data is recorded until thermal equilibrium is reached. Comparing temperature rise data across different positions provides valuable insight into the long-term effectiveness of the cooling system.

Light Source Temperature Testing Equipment

Accurate and reliable testing results require professional temperature measurement instruments and data acquisition systems.

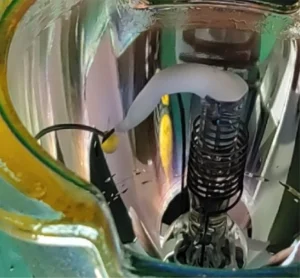

For discharge lamp testing, specialized test lamps equipped with temperature probes are used to measure filament, front, and base temperatures in real time. Additionally, discharge lamps with infrared observation windows are utilized together with infrared temperature measurement equipment to perform non-contact surface temperature monitoring of the bulb, providing a more complete thermal profile.

For LED fixtures, as there is NTC inside in the LED module, normally the software of the fixture can display temperature of the LED module.

Temperature data is continuously collected and automatically logged by a multi-point temperature recording system, enabling comprehensive analysis and report generation.

Light Source Temperature Testing Process

A complete temperature testing procedure begins with fixture installation and environmental verification.

Engineers first mount the fixture on a standardized testing platform, ensure stable ambient conditions, and ensure all measuring instruments calibrated.

Next, thermocouples or temperature probes are installed at designated measurement points and connected to the data acquisition system. After sensor installation is completed, the fixture is powered on in the specified operating mode and baseline temperature data is recorded.

The fixture is then positioned according to the testing plan, continuous works at least half hour at every test position, and temperature changes are continuously monitored and recorded at each angle.

For LED fixtures, the testing duration is typically no less than four hours to ensure that thermal equilibrium is achieved.

Upon completion, engineers analyze all recorded temperature data, compare temperature rise performance across various operating modes and positions, and evaluate whether the fixture meets design requirements.

A comprehensive thermal performance report is then generated to support product certification, quality control, and future design optimization.

What Will You Receive?

Through our professional light source temperature testing service, you will receive:

✓ Complete Thermal Performance Test Report (PDF)

✓ Detailed Temperature Test Data Records

✓ Multi-Angle Temperature Rise Comparison Analysis

✓ Product Safety and Reliability Assessment

✓ Engineering Optimization and Improvement Recommendations

Systematic thermal validation helps identify potential thermal management issues before they become field failures, improving product reliability, reducing operational risks, and continuously optimizing overall fixture performance.

Conclusion

For professional stage lighting equipment, thermal management especially light source thermal management is not only critical to product lifespan but also essential for show safety and reliable operation.

Through rigorous light source temperature testing, manufacturers can thoroughly validate thermal performance, identify potential risks early, and continuously optimize product design.

For rental companies, system integrators, lighting designers, and OEM/ODM brands, selecting fixtures that have undergone comprehensive thermal validation can significantly reduce on-site failure rates, improve project delivery quality, and ensure more stable and reliable lighting performance.
